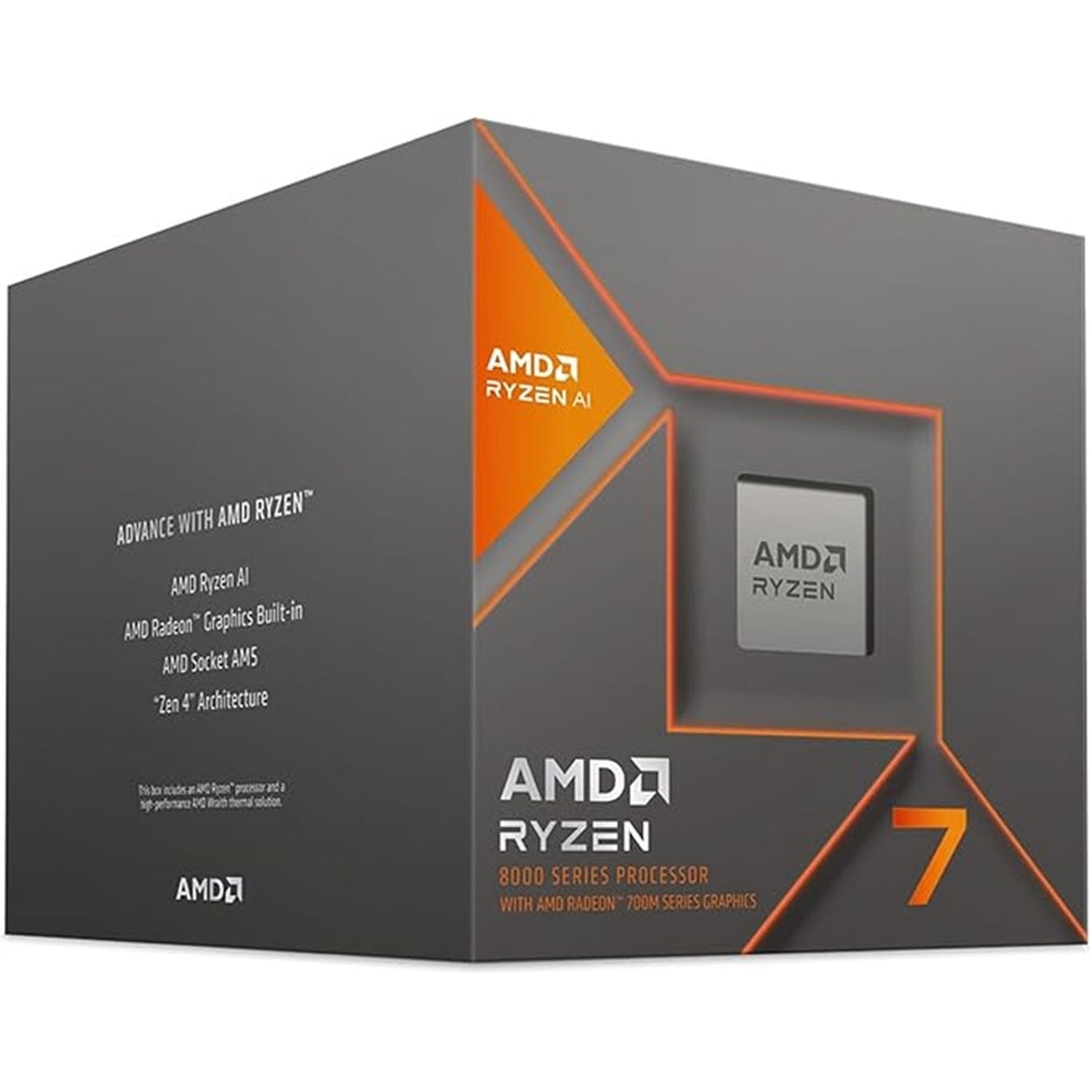

AMD Ryzen 7 8700G Desktop Processor with AMD Ryzen AI & Radeon 780M Graphics
The AMD Ryzen 7 8700G with AMD Ryzen AI is an all-in-one desktop processor featuring integrated AMD Radeon 780M graphics.
Unrivaled All‑In‑One Performance
Unlock your system’s potential with the AMD Ryzen 7 8700G desktop processor.
Featuring a 4.2 GHz base clock and 8 CPU cores, this AM5 processor is designed for high performance and smooth multitasking, supported by 16 threads and a boost clock of up to 5.1 GHz.
Turbocharged Multitasking
- 8 CPU cores with multithreading (SMT)
- 16 threads for demanding workloads
- Up to 5.1 GHz max boost clock
- 4.2 GHz base clock
Immersive Radeon 780M Graphics
The AMD Ryzen 7 8700G includes integrated AMD Radeon 780M graphics, delivering visuals and smooth gaming experiences without requiring a dedicated graphics card.
- AMD Radeon 780M with 12 graphics cores
- Up to 2900 MHz graphics frequency
- Support for up to 4 displays
General Specifications
| Specification |
Details |
| Name |
AMD Ryzen 7 8700G |
| Family |
Ryzen |
| Series |
Ryzen 8000 Series |
| Form Factor |
Desktops |
| AMD PRO Technologies |
No |
| Regional Availability |
Global |
| Processor Architecture |
Zen 4 |
| # of CPU Cores |
8 |
| Multithreading (SMT) |
Yes |
| # of Threads |
16 |
| Max. Boost Clock |
Up to 5.1 GHz |
| Base Clock |
4.2 GHz |
| L2 Cache |
8 MB |
| L3 Cache |
16 MB |
| Default TDP |
65 W |
| AMD Configurable TDP (cTDP) |
45–65 W |
| Processor Technology for CPU Cores |
TSMC 4 nm FinFET |
| CPU Compute Die (CCD) Size |
178 mm² |
| Package Die Count |
1 |
| Unlocked for Overclocking |
Yes |
| AMD EXPO Memory Overclocking Technology |
Yes |
| Precision Boost Overdrive |
Yes |
| Curve Optimizer Voltage Offsets |
Yes |
| AMD Ryzen Master Support |
Yes |
| CPU Socket |
AM5 |
| Supporting Chipsets |
A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| CPU Boost Technology |
Precision Boost 2 |
| Instruction Set |
x86-64 |
| Supported Extensions |
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
| Max. Operating Temperature (Tjmax) |
95 °C |
Operating System Support
| OS Support |
Details |
| Windows |
Windows 11 64-Bit, Windows 10 64-Bit |
| Linux |
RHEL x86 64-Bit, Ubuntu x86 64-Bit |
Connectivity
| Feature |
Details |
| Native USB 4 (40 Gbps) |
2 |
| Native USB 3.2 Gen 2 (10 Gbps) |
2 |
| Native USB 2.0 (480 Mbps) |
1 |
| PCI Express Version |
PCIe 4.0 |
| Native PCIe Lanes (Total/Usable) |
20 / 16 |
| NVMe Support |
Boot, RAID0, RAID1 |
Memory Support
| Feature |
Details |
| System Memory Type |
DDR5 |
| Memory Channels |
2 |
| Max. Memory |
256 GB |
| System Memory Subtype |
UDIMM |
| Max Memory Speed (2x1R) |
DDR5-5200 |
| Max Memory Speed (2x2R) |
DDR5-5200 |
| Max Memory Speed (4x1R) |
DDR5-3600 |
| Max Memory Speed (4x2R) |
DDR5-3600 |
| ECC Support |
Yes (requires platform support) |
| AMD SmartAccess Memory |
Available |
Integrated Graphics – AMD Radeon 780M
| Feature |
Details |
| Graphics Model |
AMD Radeon 780M |
| Graphics Core Count |
12 |
| Graphics Frequency |
2900 MHz |
| DirectX Version |
12 |
| DisplayPort Version |
2.1 |
| DisplayPort Extensions |
Adaptive-Sync, HDR Metadata, UHBR10 |
| DisplayPort Max Refresh Rates (SDR) |
7680x4320 @ 60 Hz, 3840x2160 @ 240 Hz, 3440x1440 @ 360 Hz, 2560x1440 @ 480 Hz, 1920x1080 @ 600 Hz |
| DisplayPort Max Refresh Rates (HDR) |
7680x4320 @ 60 Hz, 3840x2160 @ 240 Hz, 3440x1440 @ 360 Hz, 2560x1440 @ 480 Hz, 1920x1080 @ 600 Hz |
| HDMI Version |
2.1 |
| HDCP Version Supported |
2.3 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Multi-Monitor Support |
Yes |
| Max Displays |
4 |
| AMD FreeSync |
Yes |
| Wireless Display |
Miracast |
Video Encode Capabilities (Max Bandwidth)
H.264 (8 bpc)
- 1080p: 630
- 1440p: 373
- 2160p: 175
H.265 (8 bpc)
- 1080p: 630
- 1440p: 373
- 2160p: 175
- 4320p: 43
AV1 (8/10 bpc)
- 1080p: 864
- 1440p: 513
- 2160p: 240
- 4320p: 60
Video Decode Capabilities (Max Bandwidth)
MPEG2 (8 bpc)
- 1080p60
VC1 (8 bpc)
- 1080p60
VP9 (8/10 bpc)
- 1080p: 786
- 2160p: 196
- 4320p: 49
H.264 (8 bpc)
- 1080p: 1200
- 2160p: 300
- 4320p: 75
H.265 (8/10 bpc)
- 1080p: 786
- 2160p: 196
- 4320p: 49
AV1 (8/10 bpc)
- 1080p: 960
- 2160p: 240
- 4320p: 60
AI Engine Capabilities – AMD Ryzen AI
| Feature |
Details |
| Brand Name |
AMD Ryzen AI |
| AMD Ryzen AI |
Available |
| Performance |
Up to 16 TOPS |
