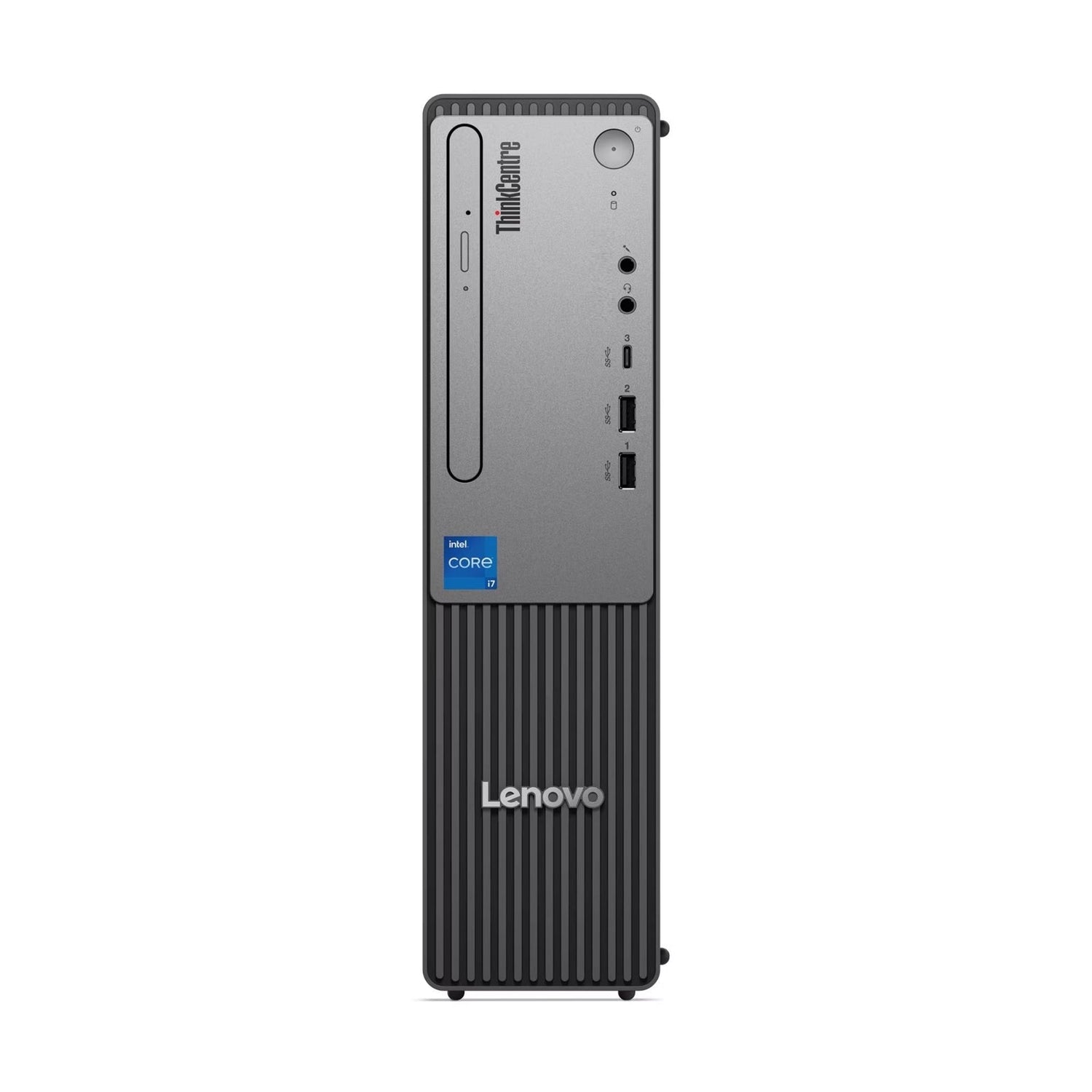

Lenovo ThinkCentre Neo 30s Gen 5 SFF Desktop
Compact Size, Colossal Power
Boost business performance with the Lenovo ThinkCentre Neo 30s Gen 5 Small Form Factor (SFF) desktop, powered by Intel® Core™ processors. Designed for compact workspaces, it delivers optimal performance so demanding tasks feel effortless. Benefit from:
- Flexible storage options
- Ample memory capacity
- Optional Intel® Arc™ graphics support to match your ambitions
Cool, Efficient & Silent
Keep performance steady without overheating, thanks to the Intelligent Cooling Engine (ICE). Adaptive cooling modes help ensure:
- Cool, efficient operation under heavy workloads
- A quieter workspace, supported by TUV Ultra Low Noise certification
Bridge Devices, Break Barriers
Stay connected and enable seamless multi-device collaboration with this small-form-factor desktop. Whether exchanging medical files or sharing classroom notes, the Smart Connect app supports quick and secure cross-device interaction. Enhance productivity further with:
- Versatile ports
- Expansion slots
- Optional Smart Cable support
Built-In Safeguards You Can Trust
The ThinkCentre Neo 30s Gen 5 SFF is protected by ThinkShield hardware and software security solutions, including:
- Firmware Trusted Platform Module (fTPM) for data encryption
- BIOS-level Smart USB protection to help prevent unauthorized access
- Physical security via Kensington Security Slot™, padlock loop, and intrusion switch cable
Credibility & Collaboration
Lenovo focuses on smarter technology that supports a brighter, more sustainable future for customers, communities, and the planet. The ThinkCentre Neo 30s Gen 5 SFF reflects this commitment through pursuit of industry-leading labels and certifications that highlight sustainability in product design.
Technical Specifications
| Category |
Specification |
| Processor |
Intel® Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core 2.1 / 4.6GHz, E-core 1.5 / 3.4GHz, 12MB |
| Graphics |
Integrated Intel® UHD Graphics |
| Chipset |
Intel® SoC Platform |
| Memory (Installed) |
1x 16GB SO-DIMM DDR5-5200 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR5-5200 |
| Storage (Installed) |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal |
| Max Storage Support |
Up to two drives, 2x M.2 SSD; M.2 SSD up to 1TB each |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec |
| Speakers |
1W x 1 |
| Power Supply |
180W 85% |
| Keyboard |
USB Calliope Keyboard, Black, English (UK) |
| Mouse |
USB Calliope Mouse, Black |
| Expansion Slots |
One PCIe® 4.0 x16 (low-profile, length 155mm, height 70mm) |
|
One PCIe® 3.0 x1 (low-profile, length 155mm, height 70mm) |
|
Three M.2 slots (one for WLAN, two for SSD) |
| Case Color |
Chassis: Black; Bezel: Grey |
| Stand |
None |
| Pen Support |
Pen not supported |
| Form Factor |
SFF (8.2L) |
| Dimensions (W x D x H) |
92.5 x 291.7 x 339.5 mm (3.6 x 11.5 x 13.4 inches) |
| Weight |
Around 4.63 kg (10.2 lbs) |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX203, 802.11ax 2x2 + BT5.2 |
| WWAN |
Non-WWAN |
| Ethernet |
Integrated 100/1000M |
Ports & Connectivity
Front Ports
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
Rear Ports
- 2x USB-A (Hi-Speed USB / USB 2.0)
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
- 1x HDMI® 2.1 TMDS
- 1x VGA
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
Optional Rear Ports (Configured)
Monitor Cable
Security & Management
- Firmware TPM 2.0 integrated in SoC
- Kensington® Security Slot™
- Padlock loop
- No Smart Cable Clip
- No chassis intrusion switch
- No additional security
Warranty & Software
- Base Warranty: 1-year, Courier or Carry-in
- Included Upgrade: 1Y Onsite from 1Y Depot WHB (CPN)
- Operating System: Windows® 11 Pro, English
- Bundled Software: None
- Bundled Accessories: Slim ODD Bracket Kit
